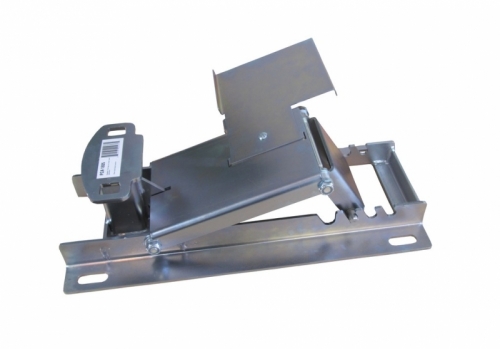

Floor Mount Winch Anchor

The floor mount is designed for anchoring the Portable Winch to a concrete floor. The most common usage is for pulling wires inside a building. It can also be used outside when no other anchor point is available. It is anchored by installing four standard concrete anchor bolts in the floor. Recommended bolt size is ½’’ (12-13 mm).

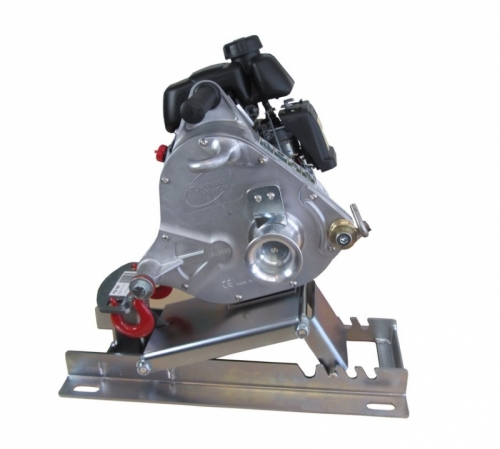

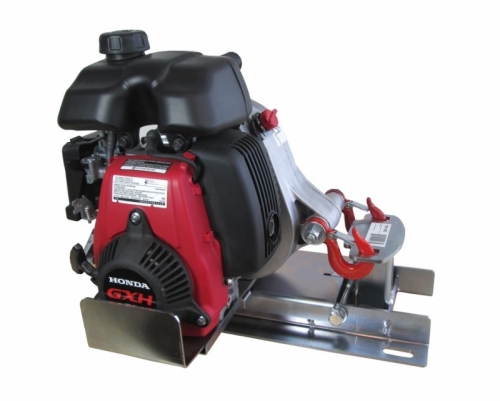

The Portable Winch is anchored from its hooks and a side plate maintains the winch leveled. The adjustable winch support plate is adjustable from 0 degree to 20.5 degrees with two intermediate steps at 13.5 and 18.5 degrees. This allows the pulling direction to be adjusted according to the position of the electrical box or the load and makes the pulling job easier for the operator, particularly for long pulls and light loads.
For models PCW5000, PCW5000-HS, PCH1000 and PCT1800.
Specifications:
Weight - 9.20 kg (20.28 lb)
Dimensions
-Length 50.8 cm (20'')
-Width 34.3 cm (13-1/2'')
-Height 13 cm (5-1/8’’)
Material
- Zinc plated steel
Warranty
-1 year
