DME

SKU: DME
Price:
Price varies based on options.

Model:
Qty: - +
   - OR -
The DME is a classic ultrasound measuring system and perfect to use in sample plots.

The DME is perfect for forest distance measurement work. It offers quick and accurate readings in difficult terrain and areas with thick underbrush. The DME system is useful in sample plot work, for road construction, in building dimension, timber cruising and stakeouts.

Get the exact distances in English or metric units of up to 30m/98ft or more with an accuracy of +-1%. With the “Reverse Prism” function you can use the DME on point samples, sampling a full spectrum of basal area factors (BAF’s). By selecting one of the built in BAF’s the DME will measure the tree’s distance from plot center then calculate the minimum diameter that tree must be to be included in your point sample. This solution eliminates all of the limitations associated with traditional prism cruising, such as obscured views from plot center. The DME instrument can be set to function as a transponder. This work mode allows two operators to continuously measure the distance in between each other, to ensure for example exact road width. The DME is easy to calibrate battery consumption is low.

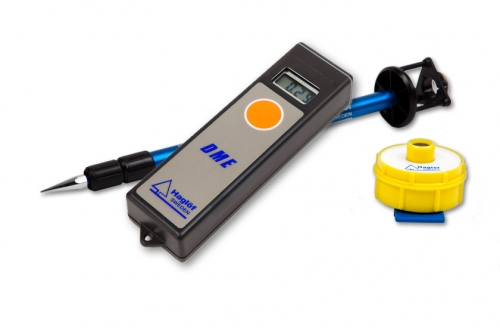

DME 15-100-1001 complete 360° package/set incl. DME instrument, transponder T3, plot staff and adapter. 15-100-1003 DME measuring instrument only. 15-100-1004 DME measuring instruments (2 ea) in pair. User instructions included. Aluminum transport case when ordering complete set. Measuring instrument and transponder use AA batteries that may or may not be included in the case depending on shipping destination.

The Transponder T3 is water resistant, rugged and has a simple construction in a bright, visible color. T3 uses one AA battery and it is compatible with Haglöf instruments DP DME, Vertex IV, DME and VL Vertex Laser. The transponder is equipped with a pin to place directly on a tree stem. It can also be used with an adapter and monopod staff to measure in a full circle in sample plot work. Art. no. Transponder T3 orange: 15-104-1012. Diameter T3: 70mm/2.8”. Weight: 85g/3.4oz. 1 x 1.5V AA alkaline battery, consumption max. 9mW. The Monopod plot staff is produced in sturdy light-weight, bright blue aluminum material with a pointy end. Art. no. Monopod plot staff: 15-104-1013. Height when assembled 130cm/50.7”, weight approx. 240g/9.6oz. The Adapter is mounted on the plot staff and allows for measuring in a full 360° circle. Art. no. Adapter 15-104-1011. Plastic, height approx. 47mm/1.88”, weight approx. 40g/1.6oz.

The DME works with ultrasound technique

Haglöf Sweden's ultrasound instruments are tested and proven reliable in all types of terrain and conditions.


MEASURE IN A FULL, 360° CIRCLE

The exact plot radius can be measured from any direction to the plot center when the T3 transponder is mounted on the monopod and the custom 360° adapter.



BAF FUNCTIONS BUILT-IN

With the Basal Area Factor (BAF) function you will know the minimum diameter for trees to be counted and included in the plot.



DME - DME

The DME can also work in pair, with two DME measuring instruments measuring the distance in between. This method is useful to maintain equal width for example in road
construction work and when clearing along power lines.

Technical Specificatins:

Physical

Dimensions (LxWxH)

30x40x125mm/ 1.2x1.6x4.9"

Weight

90g/3.2oz

Battery

 9 V Alcaline

Current

7 mA

Temperature

-15°—+45°C / 59°—113°F
Ultrasound

Ultrasonic frequency

25 kHz

Distance (max) to transponder T3

≈30m/100ft

Distance (max) to T3 with 360° adapter

≈20m/60ft

Resolution

0.01m/0.1ft

Accuracy

1% or better when calibrated
Transponder T3

Dimensions

Diameter 70mm/2.8”

Weight

85g/5oz (battery included)

Battery

1x 1,5V AA Alkaline

Power consumption

9mW

Other

360° Adapter/Spreader

Plastic, weight app. 30g/1oz

Monopod/plot staff

4-parts, 33-140cm, weight app. 270g/9.5oz, aluminium/plastic
